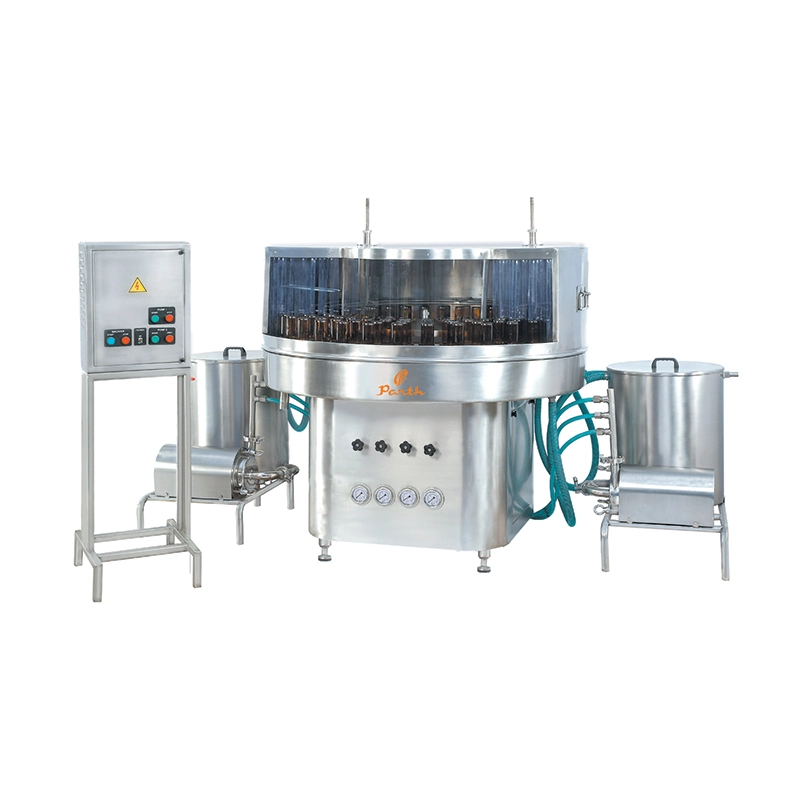

Semi-Automatic Rotary Bottle Washing Machine

The Rotary Bottle Washing Machine is a compact and highly efficient machine with an elegant look. This multifunctional multi-featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with a "GENEVA" mechanism and requires manual loading and unloading of bottles.

Operation of Semi-Automatic Rotary Bottle Washing Machine

The bottles are loaded on the subsequent indexing part of the rotating platform and are cleaned in a series of operations. Specially designed bottle holders are provided to hold bottles with a neck diameter. The bottles are placed in an inverted position in these cup-shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings. It also sprays water and air in subsequent zones when bottles are stopped, which ensures the saving of water and air. The sequence of various washing media to suit specific requirements.

Technical Specification of Semi-Automatic Rotary Bottle Washing Machine

Model PRWM-64/80/96
Output / Hour* 3000 to 6000
No of Container Holders 64/80/96
Direction of Machine** Clockwise
Power**
Consumption
Main motor 0.5 HP / 415 Volts / 50 Hz
Pump Two Nos. 0.5 HP x 2 = 1 HP / 415 Volts / 50 Hz
Electrical Heater (Optional) 3 Kw.
Tank Capacity 50 Ltrs. S.S. 316 (2 Nos.)
Wash Cycle 4 Inner+1 Outer
Working height 850 to 900 mm
Machine Dimension 1500 (L) x 1750 (W) x 1300 (H)
Case Dimensions Machine 1600 (L) x 1600 (W) x 1550 (H)
Tanks 1550 (L) x 1000 (W) x 1550 (H)
Net Weight 500 kg ( approx )
Gross Weight 800 kg ( approx )
Change the parts required (A) Neck Die: Bottle holding pocket.
(B) Flat Container: A Special type of cup.

Semi-Automatic Rotary Bottle Washing Machine Input Specifications:

Round Shape Ø30 mm to Ø80 mm***, Respectively height 50 mm to 270 mm***, Ø 22 to Ø 28 Neck***
Flat / Square* 30 mm to 80 mm (Length), respectively 10 mm to 50 mm (Width) respectively height 58 mm x 190 mm
Note: *Depends on bottle size & operator speed.
** We can supply as per customer requirements.
*** With help of change parts.

Semi-Automatic Rotary Bottle Washing Machine Wash sequence

The machine provides 4 water washes & 1 Air
  • 1st Wash – Re-circulated Water …. Drain
  • 2nd Wash – Re-circulated water (Inner & Outer)... Drain
  • 3rd Wash – Fresh D.M. Water... Collect in the Tank for Recirculation
  • 4th Wash – Fresh D.M. Water... Collect in the Tank for Recirculation
  • 5th Wash – Air (Optional)
Complete flexibility with the user for the washing cycle.

Semi-Automatic Rotary Bottle Washing Machine Consumption of Water:

First Wash 230 Ltrs./Hr.
Second Wash No consumption as such, water loss during recirculation shall be compensated
Third Wash 230 Ltrs./Hr.
Fourth Wash No consumption as such, water loss during recirculation shall be compensated, OR Air Wash
Outside Wash 200 Ltrs./Hr.

Salient Features of Semi-Automatic Rotary Bottle Washing Machine

  • Geneva Mechanism is used to maintain the timing between two washes.
  • Five Wash (Four inner and one outer).
  • Stationary Spray nozzles, Collection tray & Recirculation System avoid Contamination of the water cycle.
  • To adjust the sequence of washes as per the customer’s SOP.
  • Solenoid valve for each washing sequence reduces leakage & wastage of water.
  • Higher-pressure centrifugal pumps are needed to clean the bottle properly.
  • Pumps and Tanks are fitted on separate stands for easy cleaning & maintenance.
  • Height-adjustable bottle guide for a pet or a lightweight bottle.
  • Separate Control panel is provided to be located as per the customer’s convenience and to avoid any accidents

Semi-Automatic Rotary Bottle Washing Machine Utility Requirement:

Electrical supply 3 Phase + Neutral + Earthing
Electrical load 2 KW + 3 KW for heater
Air Pressure: Minimum 6 bar pressure 5 CFM
