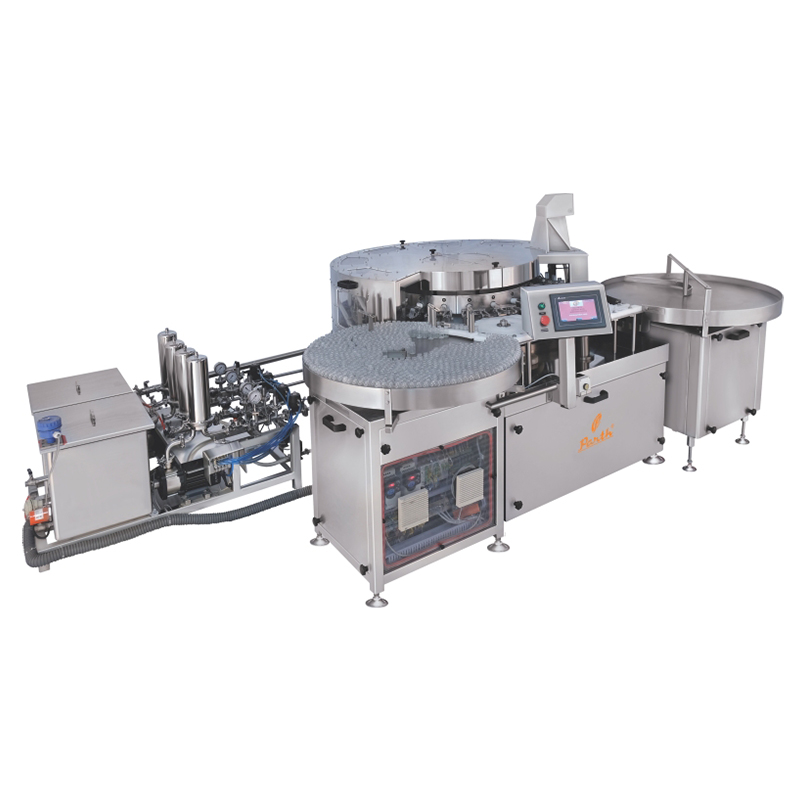

Rotary Vial Washing Machines

The Vial rotary washing machine is designed to wash both internal and external surfaces of Vial at a rated speed of 240 per minute for 2ml to 100 ml Vial.

Operation of Rotary Vial Washing Machines

  • Vial s are fed on to the infeed conveyor.
  • The conveyor feeds the Vial s to the infeed star wheel through feed screw that has slots suitable for the diameter of the Vial s.
  • The star wheel transfers Vials on to the grippers mounted on drum of the washing section.
  • The drum on which grippers are mounted moves at a uniform speed. Media is jetted on to the Vial outer surface.
  • Vial s are passed through the three stages of washing cycle with alternate flushing by compressed air.
  • After internal and external drying process, the Vial s are transferred to the tunnel from outfeed star wheel through outfeed conveyor.

Technical Specification of Rotary Vial Washing Machines

Model PARVM-120 PARVM-240
Output / Hour* Up to 7200* Up to 14400*
Direction of Movement** Rotary
Power Consumption** Main Machine 7 kW / 415 Volts / 50 Hz.
Centrifugal pump 0.75 HP- 2nos
Height of Conveyor** 850 mm to 900 mm Adjustable.
Machine Dimensions** 3500 (L) x 1400 (W) x 2100 (H)
Dimensions 2800 mm (L) X 2000mm (W) X 1800mm (H)
Case Dimensions 3000mm (L) X 2200mm (W) X 2000mm (H)
Net Weight 1250 kgs. (Approx.)
Gross Weight 1700 kgs. (Approx.)

Rotary Vial Washing Machine Input Specifications:

Container Neck Diameter** Minimum 13 ,20,32 mm
Container Size** Round Shape Ø 20 mm to Ø 60 mm
Respectively height 58 mm to 120 mm
(Height option for other Vial height available)
Rubber Stopper 13- 32 mm diameter.
Note: * Depends on Container size, Neck diameter of container etc.
** We can supply as per customer requirements.
*** With help of change parts.

Salient Features of Rotary Vial Washing Machines

  • PARTH make Washing Machines designed to clean the inner & outer surface of Vial.
  • Continuous rotary travel system.
  • Machine divided into 3 basic sections – Mechanical drive / Washing section / Filtration section, suitably isolated / separated from each other.
  • Facility to feed Vial from turntable to star wheel
  • Vials are held in inverted position through the washing & cleaning stage.
  • At the individual stations, spray tubes travel in synchronism with Vial and enters the Vial with orifices exactly centered. The spray tubes follow the continuously moving grippers from the start to the finish of a working station and retract.
  • Standard provision for media jetting at six stations. Filtration Unit housed in a separate section / machine mounted.
  • Easy to changeover of change parts.

Rotary Vial Washer Utility Requirement:

Electrical supply 3 Phase + Neutral + Earthing
Electrical load 7 KW
Purified Water consumption 300 lit/hr at 2.5-3 kg/cm2
WFI consumption 250 lit/hr. at 2.5-3 kg/cm2
Compressed air consumption 15m3/hr at 3-4 kg/cm2
