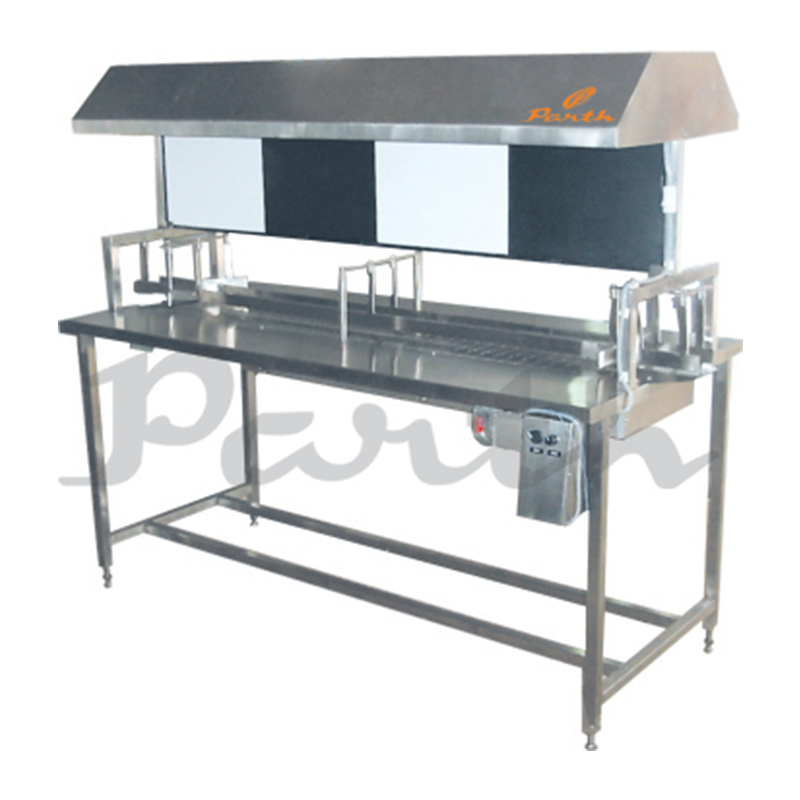

Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts.

Inspection Conveyor Operation:

The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically separated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection the bottles are placed in the central track, which is transfer for labeling.

Technical Specification of Inspection Conveyor:

Model – Inspection Conveyor PVBI-120
Direction of Movement Left to Right
Output* Up to 120 Containers / minute
Number of operator Four (2 x 2, Two side seated)
Power Characteristics** 0.5 HP/220 V/50 Hz
Height of Conveyor** 860 mm to 910 mm
Machine Dimensions** 1500 mm (L) x 700 mm (W) x 1525 mm (H)
Case dimensions 1850 mm (L) x 950 mm (W) x 1750 mm (H)
Net weight 250 Kg.
Gross Weight 425 Kg. Approx.

Input Specifications:

Container Size** Round Shape Ø 22 mm to Ø 80 mm
Respectively height 58 mm to 210 mm
(Height option for other bottle height available)
Flat / Square 15mm to 80 mm (Length)
Respectively 10mm to 50 mm (Width)
Respectively height 58 mm X 240 mm
(Height option for other bottle height available)
*   Depends on operator, bottle size etc.
** We can supply as per customer requirements.

Salient Features:

  • A/C Frequency Drive.
  • Direct gear drive.
  • Length can make as per customer requirement.
  • PVC black & white board as per GMP norms.
  • UHMW self-lubrication guide below chain.
  • SS elegantly matt finishing.
  • Adjustable height of conveyor belt, to align with other machine of the line
  • Self-alignment bearing for easy maintenance.
  • Rigid Vibration free Construction for trouble free performance.

Utility Requirement: Inspection Conveyor

Electrical supply Single Phase + Neutral + Earthing
Electrical load 0.5 KW
