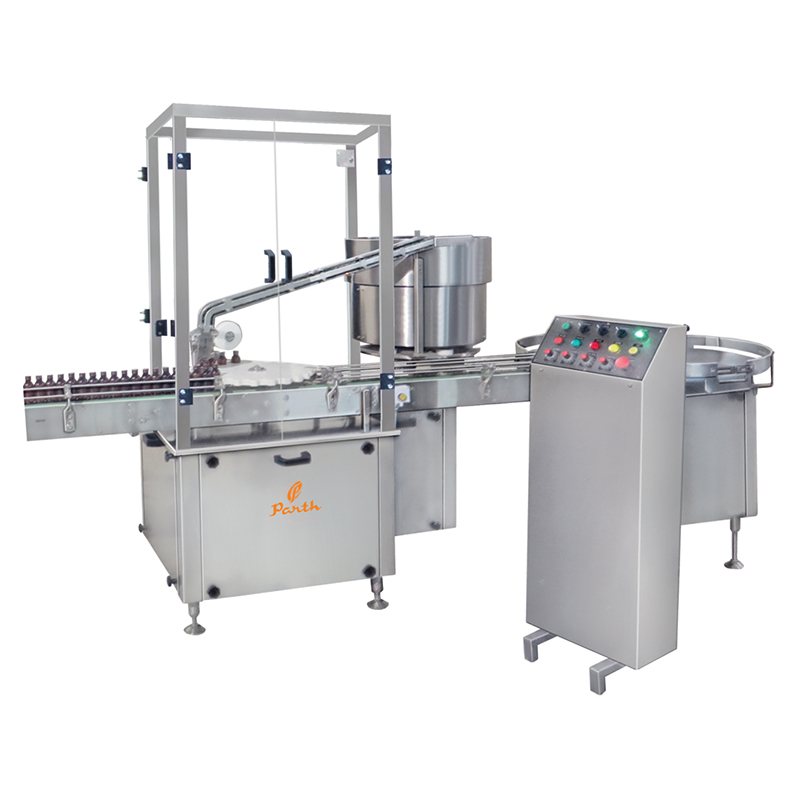

Automatic Rotary type Measuring Cup placement Machine

Automatic rotary type Measuring / Dozing Cup Placement & Pressing machine is highly efficient machine with elegant look, consists of conveyor, vibrator and pressing roller. All the exposed parts of the unit are in S.S., chrome platted or Cladded with S.S. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet doors are provided to facilitate the servicing of machine.

Operation of Automatic Rotary type Measuring Cup placement Machine

Automatic rotary type Measuring Cup Placement Machine suitable for placement of Measuring Cup on the sealed bottle. The feed container moving on conveyor belt are fed into star wheel, bringing the container below the pressing roller in the subsequent indexing part, meanwhile the bottle pick up a measuring cup from the delivery chute of cup feeding bowl, where the body and the neck of the container are positioned below the pressing roller, where the pressing roller is performing perfect operation of cup pressing.

Technical Specification of Automatic Rotary type Measuring Cup placement Machine

Model	PMCP-150	PMCP-200	PMCP-300
Output/Hour*	6000 - 9000*	6000 - 9000*	12000 - 14000*
Direction of Movement**	Left to Right
Power Consumption**	Main Motor	1 HP / 415 Volts / 50 Hz.
Power Consumption**	Conveyor	Synchronized
Height of Conveyor**	860 mm to 910 mm.
Machine Dimensions**	850 mm to 900 mm Adjustable.
Case Dimensions	2000mm (L) X 1000mm (W) X 1900mm (H)
Dimensions	1800 mm (L) X 800mm (W) X 1700mm (H)
Net Weight	450 Kgs. Approx.
Gross Weight	700 Kgs. Approx.

Automatic Rotary type Measuring Cup placement Machine Input Specifications:

Container Neck Diameter**	Minimum 22 mm***
Container Size**	Round Shape	Ø 28 mm to Ø 80 mm Respectively height 58 mm to 200 mm (Height option for other bottle height available)

Note: * Depends on Container size, Neck diameter of container etc.
** We can supply as per customer requirements.
*** With help of change parts.

Salient Features of Automatic Rotary type Measuring Cup placement Machine

Total cGMP model.
MS Frame Structure duly powered coated and covered with S.S. Sheet.
Machine can handle Bottle size from 20ml to 250ml and cup size of 22mm, 25mm & 28mm (with help of Change Parts)
No Cup in chute Machine Stop System
Easy to Operate, User Friendly Machine
Low noise level, low power consumption

Optional Features of Automatic Rotary type Measuring Cup placement Machine

No cup no container arrangement.
Acrylic cabinet/ Polycarbonate cabinet

Automatic Rotary type Measuring Cup placement Machine Utility Requirement:

Electrical supply	1 Phase + Neutral + Earthing
Electrical load	1.0 HP. 0.75 KW
